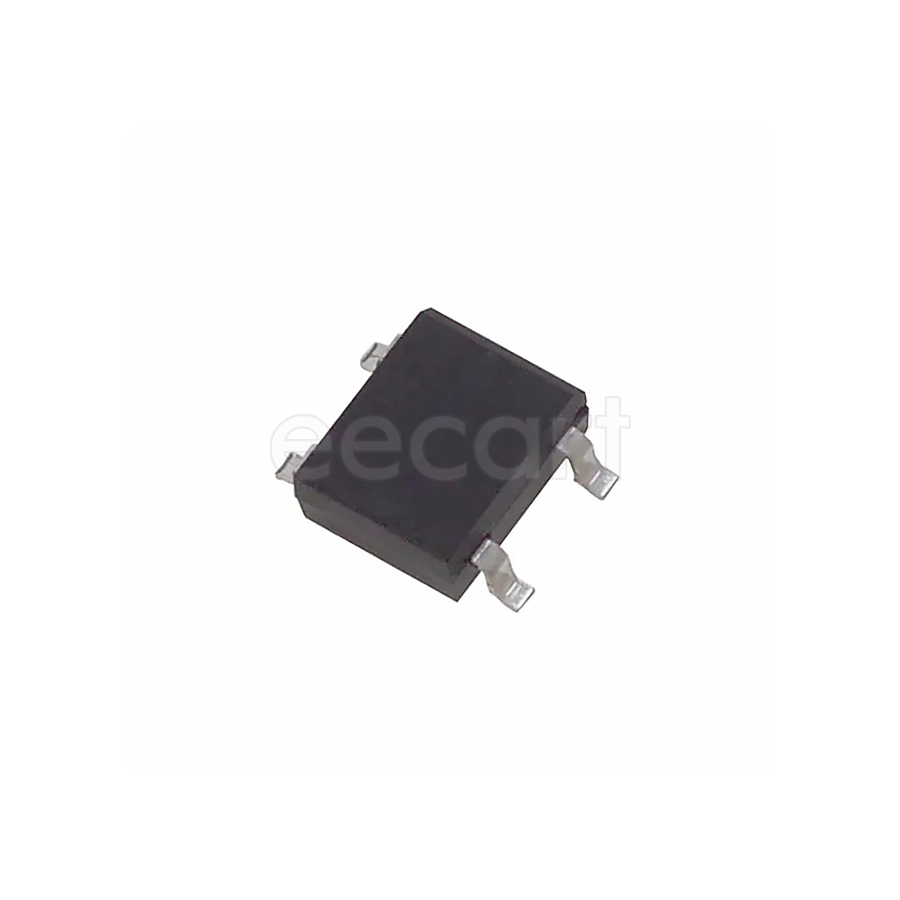

DFL1506S-E3/77
Manufacturer:
Vishay
Mfr.Part #:
DFL1506S-E3/77
Datasheet:
Description:
Bridge Rectifiers DFS SMD/SMT Single Phase Bridge 600 V Forward Current:1.5 A Forward Voltage:1.1 V
| Parameter | Value |
|---|---|
| Capacitance | |
| Length | 8.51 mm |
| Width | 6.5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Height | 3.3 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | Single Phase Bridge |
| Number of Elements | 1 |
| Forward Current | 1.5 A |
| Forward Voltage | 1.1 V |
| Average Rectified Current | 1.5 A |
| Max Reverse Leakage Current | 5 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 600 V |
| Element Configuration | Single |
| Max Surge Current | 50 A |
| Forward Surge Current (Ifsm) | |
| Reverse Voltage | 420 V |
| Peak Non-Repetitive Surge Current | 50 A |
| Reverse Current | 5 µA |
| Recovery Time | |
| Peak Reverse Voltage | 600 V |
Stock: 1862
Distributors
pcbx
pcbxUnit Price$0.73182
Ext.Price$0.73182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73182 | $0.73182 |
| 10 | $0.45910 | $4.59100 |
| 25 | $0.39956 | $9.98900 |
| 50 | $0.34774 | $17.38700 |
| 100 | $0.30264 | $30.26400 |
| 300 | $0.26674 | $80.02200 |
| 500 | $0.23510 | $117.55000 |
| 1000 | $0.18381 | $183.81000 |
| 3000 | $0.16671 | $500.13000 |
| 5000 | $0.15560 | $778.00000 |
