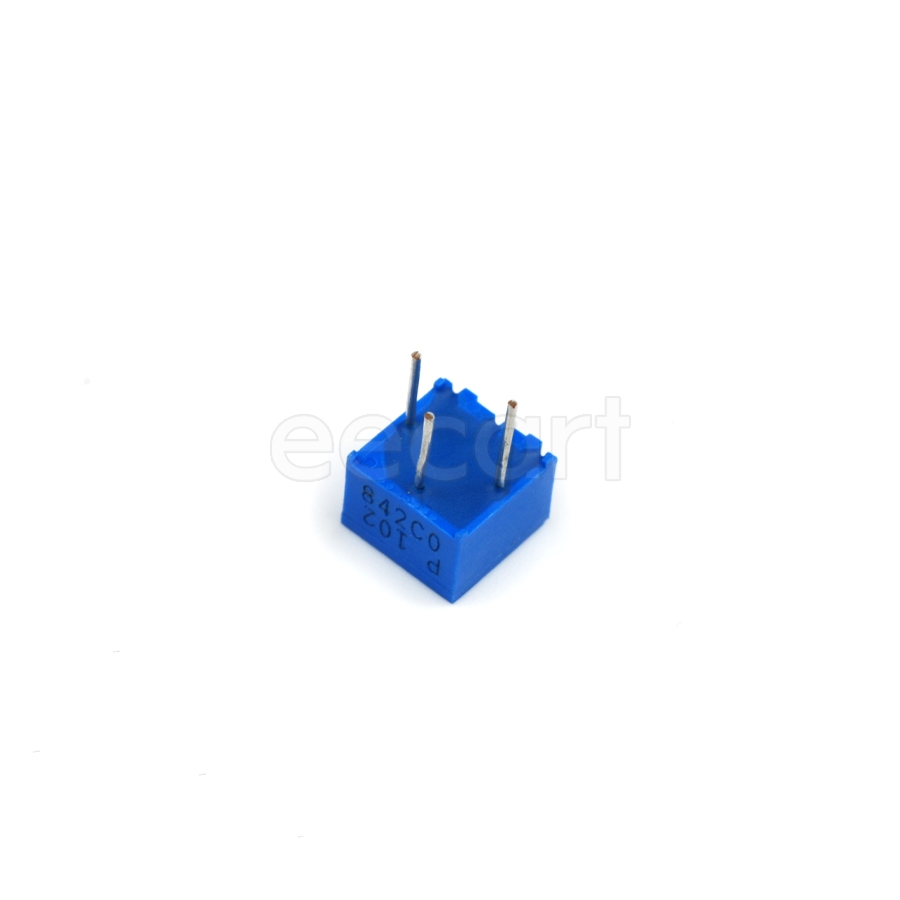

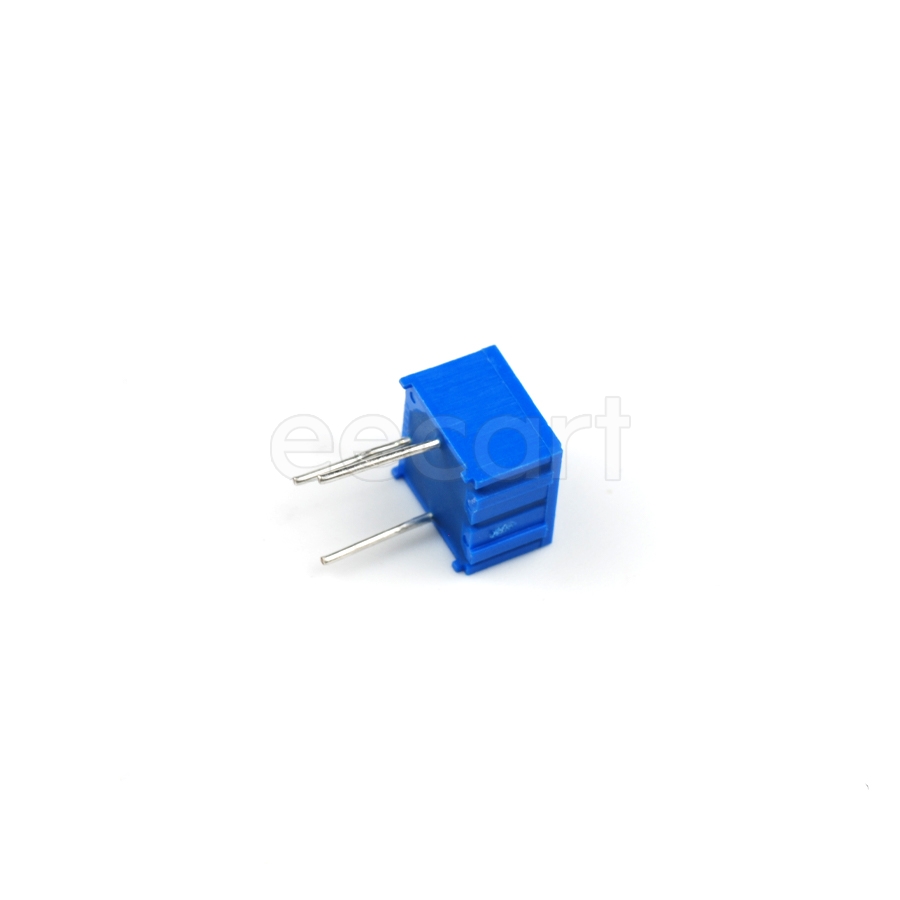

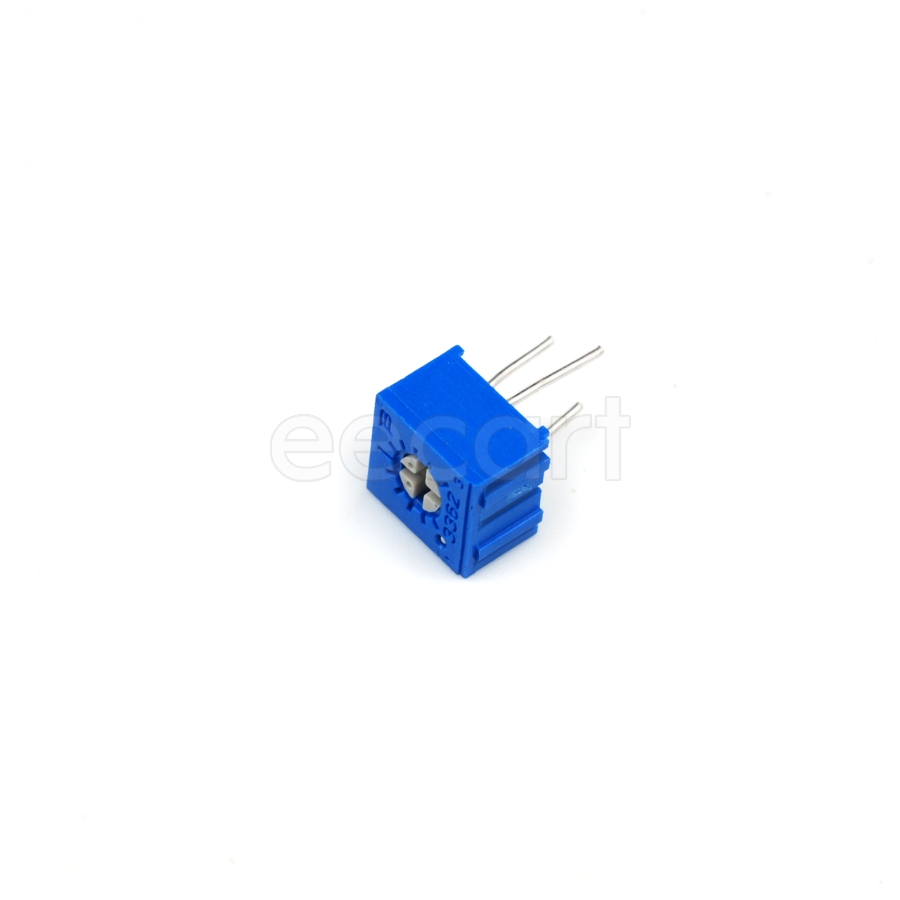

3362P-1-102LF
Manufacturer:
Bourns
Mfr.Part #:
3362P-1-102LF
Datasheet:
Description:
Resistors 6.99mmL×6.60mmW×4.70mmH Through Hole 1 kΩ 500 mW 10 %
| Parameter | Value |
|---|---|
| Taper | Linear |
| Contact Plating | Tin |
| Lead Free | Contains Lead |
| Color | Blue |
| Number of Turns | 1 |
| Power Rating | 500 mW |
| Type | Potentiometer |
| Min Operating Temperature | -55 °C |
| Military Standard | Not |
| Composition(Kit Type) | Cermet |
| Number of Terminals | 3 |
| Pitch | 2.54 mm |
| Voltage Rating | 300 V |
| Tolerance | 10 % |
| Height | 4.699 mm |
| Schedule B | 8533400080 |
| Termination | Pin |
| Voltage Rating (AC) | 300 V |
| Temperature Coefficient | 100 ppm/°C |
| Voltage Rating (DC) | 300 V |
| Length | 6.6 mm |
| Max Power Dissipation | 500 mW |
| Weight | 0.567 g |
| Resistance | 1 kΩ |
| Depth | 6.99 mm |
| Max Operating Temperature | 125 °C |
| Width | 6.6 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Lead Diameter | 460 µm |
| Packaging | Tube |
| RoHS | Compliant |
Stock: 651
Distributors
pcbx
pcbxUnit Price$0.37114
Ext.Price$0.37114
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37114 | $0.37114 |
| 10 | $0.28848 | $2.88480 |
| 50 | $0.25392 | $12.69600 |
| 100 | $0.21253 | $21.25300 |
| 500 | $0.19284 | $96.42000 |
| 1000 | $0.18071 | $180.71000 |
